PRESSURE VALVES

THE LRF BLOCKSYSTEM CAN BE USED WITH SEVERAL USERS NG 6 OF NG 10 IN A LOAD SENSING SYSTEM WITH FIXED DISPLACEMENT PUMP

PRESSURE-RELIEF VALVES FOR CONNECTION TO HANDPUMPS
MAXIMUM SYSTEMPRESSURE 800 BAR

COUNTERBALANCE VALVES FOR LINE-MOUNTING
MAXIMUM SYSTEMPRESSURE 350 BAR
MAXIMUM FLOW 60 L/MIN

PROPORTIONAL PRESSURE-RELIEF VALVES
LINE MOUNTING ALSO FOR SUN / PARKER CAVS.
MAXIMUM SYSTEEMPRSSURE 315 BAR
MAXIMUM FLOW 760 L/MIN

PROPORTIONAL PRESSURE-RELIEF VALVES
CARTRIDGE EXECUTION
MAXIMUM SYSTEMPRESSURE 315 BAR
MAXIMUM FLOW 150 L/MIN

PROPORTIONAL PRESSURE-RELIEF VALVES
SANDWICH-MOUNTING
MAXIMUM SYSTEMPRESSURE 315 BAR
MAXIMUM FLOW 700 L/MIN

PROPORTIONAL PRESSURE CONTROL VALVE
CARTRIDGE EXECUTION
MAXIMUM WORKING PRESSURE 315 BAR
MAXIMUM FLOW 320 L/MIN

ACCUMULATOR LOAD- AND SAFETY- VALVES
SUBPLATE MOUNTING NG 6 AND NG 10
MAXIMUM SYSTEMPRESSURE 315 BAR
MAXIMUM FLOW 60 L/MIN

SEQUENCE VALVES
LINE-MOUNTING
MAXIMUM SYSTEMPRESSURE 350 BAR
MAXIMUM FLOW 35 L/MIN

PRESSURE-RELIEF VALVES
LINE-MOUNTING
MAXIMUM SYSTEM PRESSURE 350 BAR
MAXIMUM FLOW 80 L/MIN

PRESSURE-RELIEF VALVES
CARTRIDGE EXECUTION
MAXIMUM SYSTEMPRESSURE 450 BAR
MAXIMUM FLOW 80 L/MIN

PRESSURE-RELIEF VALVES
SANDWICH MOUNTING NG 6
MAXIMUM SYSTEMPRESSURE 350 BAR
MAXIMUM FLOW 50 L/MIN

HIGH / LOW PRESSURE VALVE
SANDWICH-MOUNTING
MAXIMUM SYSTEMPRESSURE 315 BAR
MAXIMUM FLOW 80 L/MIN

PROPORTIONAL PRESSURE-RELIEF VALVES
SUBPLATE MOUNTING
MAXIMUM SYSTEMPRESSURE 315 BAR
MAXIMUM FLOW 200 L/MIN

VALVEBLOCKS WITH PRESSURE-RELIEF- AND OVERCENTER VALVES FOR MOUNTING DIRECT ON ORBITOL MOTORS
PRESSURE 350 BAR MAXIMUM FLOW 180 L/MIN

VALVES FOR MOUNTING DIRECTLY ON CYLINDERS 1/4" TOT 3/4"
OVERCENTER AND PILOTED CHECK VALVES
MAXIMUM WERKDRUK 315BAR

PRESSURE-RELIEF VALVES
SUBPLATE MOUNTING NG 6
MAXIMUM SYSTEMPRESSURE 350 BAR
MAXIMUM FLOW 50 L/MIN

LINE-FITTINGS FOR SEVERAL CARTRIDGE VALVES
TOOLS FOR MOUNTING CARTRIDGE VALVES

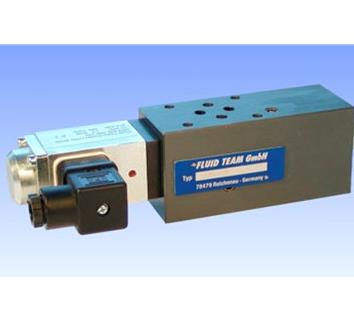

PROPORTIONAL PRESSURE CONTROL VALVE
SANDWICH-MOUNTING
MAXIMUM SYSTEMPRESSURE 315 BAR
MAXIMUM FLOW 320 L/MIN

PRE-TENSION VALVE ( DOUBLE-CHECK)
CARTRIDGE EXECUTION
MAXIMUM SYSTEMPRESSURE 350 BAR
MAXIMUM FLOW 50 L/MIN

PROPORTIONAL PRESSURE CONTROL VALVE
LINE-MOUNTING
MAXIMUM SYSTEMPRESSURE 315 BAR
MAXIMUM FLOW 320 L/MIN

PROPORTIONAL PRESSURE CONTROL VALVE
SUBPLATE MOUNTING NG 6 , 10, 16 AND 25
MAXIMUM SYSTEM PRESSURE 315 BAR
MAXIMUM FLOW 320 L/MIN

VALVE CONTROL BY   DC-MOTOR
SUITABLE FOR  PRESSURE RELIEF, PRESSURE CONTROL, THROTTLE  AND FLOW-CONTROL
